Trench Marker / Warning Tapes
Trench Marker Tapes are thermoplastic film which is fabricated from Virgin Low Density Polyethylene by blown film extrusion process. These are the economical way to warn the future excavators about the underground buried utilities like electrical cable, telephone cable, water services, drainage system, communication cables etc. The marker tapes are identifiable with colour/ warning messages/ emblem etc. of concerned utilities. these are normally would not undergo for biodegradation and able to withstand soil tolerance from PH 2.5 to PH 11.

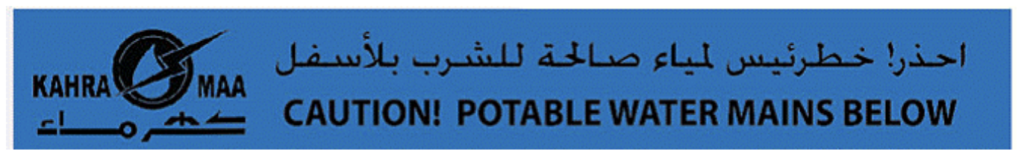

WATER MAIN
SIZE : 15 CM * 100 Meter – 200 Micron.
PRINTING : English and Arabic.
COLOUR : RAL 5000/5001. Approved by KHARAMAA (water network authority QATAR).

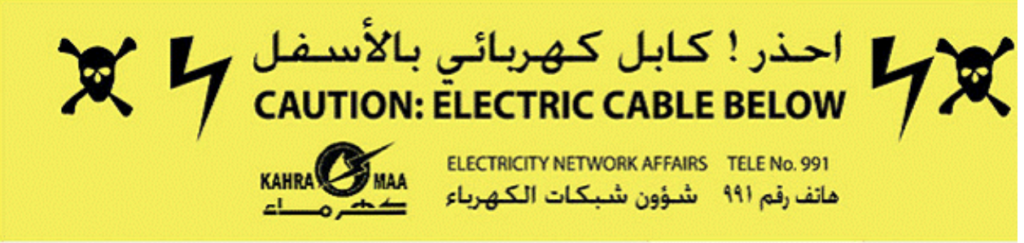

ELECTRICAL NETWORK
SIZE : 15 CM * 1000 Meter – 100 Micron.
PRINTING : English and Arabic.
COLOUR : Yellow RAL 1026/1016. APPLICATION: Below 11kv cable burial. Approved by KHARAMAA
(Electrical authority).

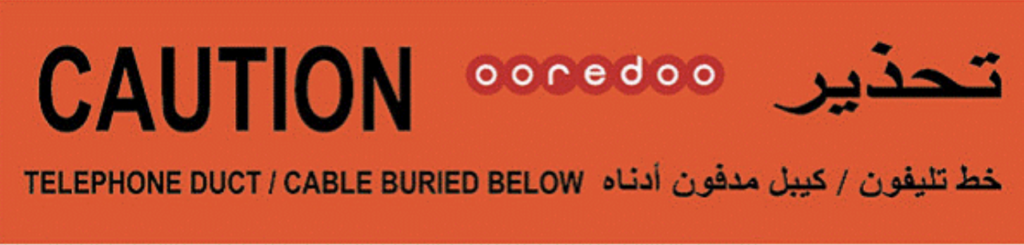

TELECOMMUNICATION SYSTEM
SIZE : 6 Inches (152.4mm) * 1000 Feet’s- 180 micron.
PRINTING : English and Arabic.
COLOUR : Orange RAL 2003/2004. Approved by Qatar telecom (Ooredoo).

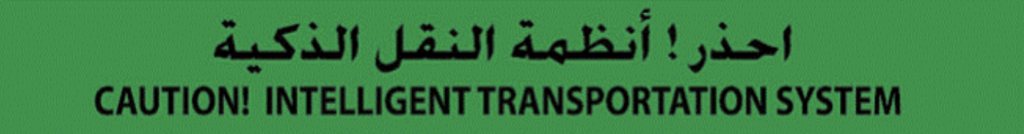

INTELLIGENT TRANSPORTATION SYSTEM
SIZE : 15 CM * 500 Meter – 200 Micron.
PRINTING : English and Arabic.
COLOUR : Green RAL 6018.
DRAINAGE SYSTEM
SIZE : 15 CM * 500 Meter – 200 Micron.
PRINTING : English and Arabic.
COLOUR : Green RAL 6018.

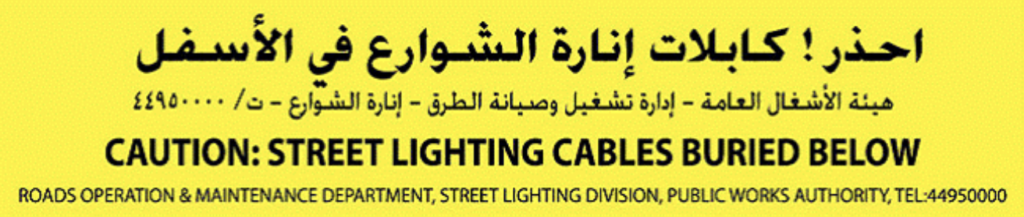

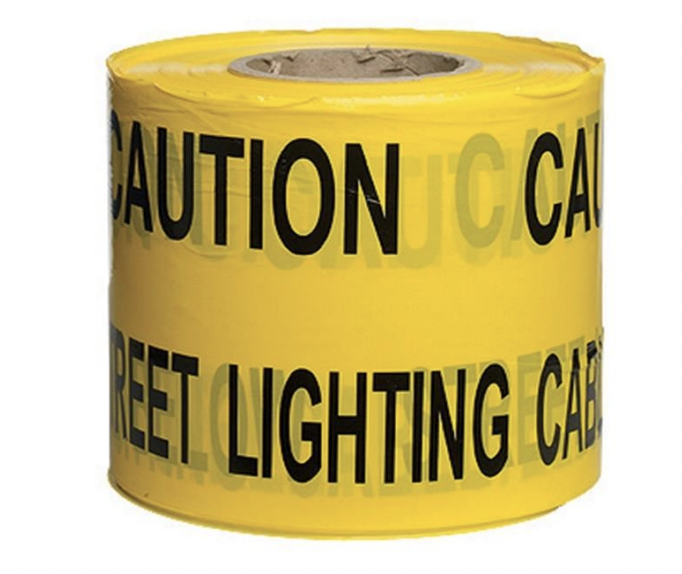

STREET LIGHTNING CABLES
SIZE : 40 CM * 1000 Meter – 100 Micron
PRINTING : English and Arabic
COLOUR : Yellow RAL 1026/1016
